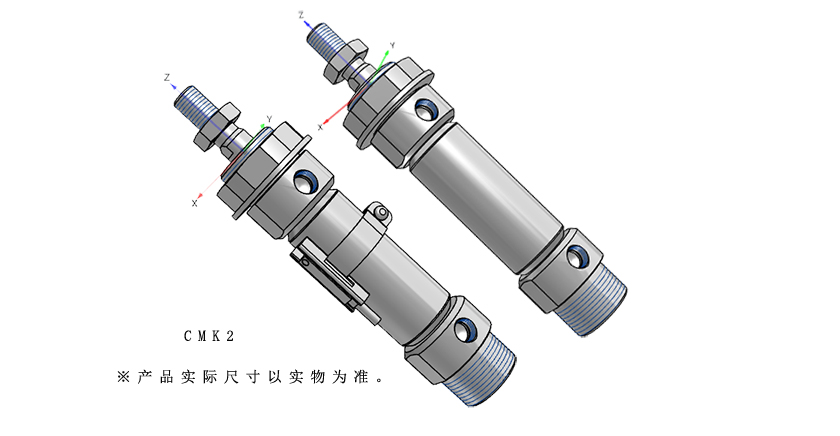

【產品種類豐富】缸筒采用不銹鋼材料的圓型通用氣缸。
產品種類、選擇項豐富,適用于多種用途。
種類 | 型號 JIS符號 | 缸徑 (mm) | 標準行程 | 最小行程 | 最大行程 | 中間行程(每mm) | |||||||||||
基本型 | 軸向腳座型雙側 | ||||||||||||||||
25 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 00 | LB | ||||||||
雙作用型 | CMK2 | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
單作用 ·加壓伸出型 | CMK2-S | φ20·φ25 | ● | ● | ● | ● | ● | 5 | 300 | 1 | ● | ● | |||||
φ32·φ40 | ● | ● | ● | ● | ● | ● | 300 | ● | ● | ||||||||
單作用 ·加壓縮回型 | CMK2-SR | φ20·φ25 | ● | ● | ● | ● | ● | 5 | 300 | 1 | ● | ● | |||||
φ32·φ40 | ● | ● | ● | ● | ● | 300 | ● | ● | |||||||||
雙作用 ·伸出行程可調型 | CMK2-P | φ20·φ25 | ● | ● | ● | ● | ● | ● | ● | ● | 25 | 450 | 1 | ● | ● | ||
φ32 | ● | ● | ● | ● | ● | ● | ● | ● | 430 | ● | ● | ||||||
φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 400 | ● | ● | ||||||
雙作用 ·縮回行程可調型 | CMK2-R | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 25 | 750 | 1 | ● | ● | ||
雙作用 ·耐熱型 | CMK2-T | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用帶橡膠氣緩沖 | CMK2- ※C | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用氣緩沖型 | CMK2-C | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·防墜落型 | CMK2-Q | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·微速型 | CMK2-F | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·雙活塞桿型 | CMK2-D | φ20·φ25 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 500 | 1 | ● | ● | ||
φ32 | ● | ● | ● | ● | ● | ● | ● | ● | 480 | ● | ● | ||||||
φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 450 | ● | ● | ||||||
雙作用 ·背靠背型 | CMK2-B | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·防回轉型 | CMK2-M | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用調速閥內置型 | CMK2-Z | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·低油壓型 | CMK2-H | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·耐切削油型 | MK2-G2 ·G3 | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
●標準、◎:準標準、○:接單生產、*:不可制作 | ||||||||||||||||||||
安裝形式 | 選擇項 | 附件 | 開關 | 記載貢碼 | ||||||||||||||||
軸向腳座型單側 | 前端法蘭型 | 后端法蘭型 | 單耳環型 | 單耳環一體型 | 單耳環軸套壓入型 | 雙耳環型 | 前端耳軸型 | 后端耳軸型 | 隙秦oc) | 隙 奏 250 ℃ | 帶快插接頭直管 | 帶快插接頭彎晉 | 活寨桿材質變更 | 凸臺去除型 | 防紫色化 | 單耳環連接件 | 雙耳環連接件 | 雙耳環支撐件 | ||
LS | FA | FB | CA | CC | CC1 | CB | TA | TB | J | L | F | FE | M | V | P6 | 1 | Y | B2 | ||
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | 84 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | 98 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | 104 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
● | ● | ● | * | * | * | * | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ◎ | 110 |
● | ● | ● | * | * | * | * | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ||
● | ● | ● | * | * | * | * | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ||
● | ● | ● | * | * | * | * | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | 116 | |
● | ● | ● | ● | ● | ● | ● | ● | ● | * | ◎ | * | * | ◎ | ◎ | * | ◎ | ◎ | ◎ | * | 122 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ○ | ○ | ○ | ○ | ○ | 126 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | 134 |
● | ● | ● | ● | ○ | ○ | ● | ● | ● | * | * | ◎ | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | 140 |
● | ● | ● | ● | ● | ● | ● | ● | ● | * | * | * | * | ◎ | * | ◎ | ◎ | ◎ | ◎ | 146 | |
● | ● | * | * | * | * | * | ● | * | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ◎ | 150 |
● | ● | * | * | * | * | * | ● | * | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ||
● | ● | * | * | * | * | * | ● | * | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ||
* | ● | * | * | * | * | * | * | * | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ◎ | 156 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | 162 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | 168 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | * | * | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | 174 |
● | ● | ● | ● | ● | ● | ● | ● | ● | * | * | ○ | ○ | * | * | * | ◎ | ◎ | ◎ | ◎ | 178 |
注1:帶前地防坐落時可以選擇。注2:幫后端防墜落時可以選擇。注3:G2時可以選擇。 | CKD |
規格 | ||||
項目 | CMK2 | |||
缸徑 mm | φ20 | φ25 | φ32 | φ40 |
動作方式 | 雙作用型 | |||
使用流體 | 壓縮空氣 | |||
最高使用壓力 MPa | 1.0 | |||
最低使用壓力 MPa | 0.1 | |||
耐壓力 MPa | 1.6 | |||
環境溫度 ℃ | -10~60(但是,不得凍結) | |||
配管口徑 | Rc1/8 | |||
行程允許誤差 mm | 8°(~200)、%“(超過200~) | |||
使用活塞速度 mm/S | 50~500 | |||
緩沖 | 橡膠緩沖 | |||
給油 | 無需(給油時請使用透平油1種ISO VG32) | |||
允許吸收能量 J | 0.166 | 0.308 | 0.424 | 0.639 |
