【產品種類豐富】缸筒采用不銹鋼材料的圓型通用氣缸。
產品種類、選擇項豐富,適用于多種用途。
種類 | 型號 JIS符號 | 缸徑 (mm) | 標準行程 | 最小行程 | 最大行程 | 中間行程(每mm) | |||||||||||
基本型 | 軸向腳座型雙側 | ||||||||||||||||
25 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 00 | LB | ||||||||
雙作用型 | CMK2 | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
單作用 ·加壓伸出型 | CMK2-S | φ20·φ25 | ● | ● | ● | ● | ● | 5 | 300 | 1 | ● | ● | |||||
φ32·φ40 | ● | ● | ● | ● | ● | ● | 300 | ● | ● | ||||||||
單作用 ·加壓縮回型 | CMK2-SR | φ20·φ25 | ● | ● | ● | ● | ● | 5 | 300 | 1 | ● | ● | |||||
φ32·φ40 | ● | ● | ● | ● | ● | 300 | ● | ● | |||||||||
雙作用 ·伸出行程可調型 | CMK2-P | φ20·φ25 | ● | ● | ● | ● | ● | ● | ● | ● | 25 | 450 | 1 | ● | ● | ||
φ32 | ● | ● | ● | ● | ● | ● | ● | ● | 430 | ● | ● | ||||||
φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 400 | ● | ● | ||||||
雙作用 ·縮回行程可調型 | CMK2-R | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 25 | 750 | 1 | ● | ● | ||
雙作用 ·耐熱型 | CMK2-T | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用帶橡膠氣緩沖 | CMK2- ※C | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用氣緩沖型 | CMK2-C | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·防墜落型 | CMK2-Q | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·微速型 | CMK2-F | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·雙活塞桿型 | CMK2-D | φ20·φ25 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 500 | 1 | ● | ● | ||
φ32 | ● | ● | ● | ● | ● | ● | ● | ● | 480 | ● | ● | ||||||
φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 450 | ● | ● | ||||||
雙作用 ·背靠背型 | CMK2-B | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·防回轉型 | CMK2-M | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用調速閥內置型 | CMK2-Z | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·低油壓型 | CMK2-H | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
雙作用 ·耐切削油型 | MK2-G2 ·G3 | φ20·φ25·φ32·φ40 | ● | ● | ● | ● | ● | ● | ● | ● | 5 | 750 | 1 | ● | ● | ||
●標準、◎:準標準、○:接單生產、*:不可制作 | ||||||||||||||||||||
安裝形式 | 選擇項 | 附件 | 開關 | 記載貢碼 | ||||||||||||||||
軸向腳座型單側 | 前端法蘭型 | 后端法蘭型 | 單耳環型 | 單耳環一體型 | 單耳環軸套壓入型 | 雙耳環型 | 前端耳軸型 | 后端耳軸型 | 隙秦oc) | 隙 奏 250 ℃ | 帶快插接頭直管 | 帶快插接頭彎晉 | 活寨桿材質變更 | 凸臺去除型 | 防紫色化 | 單耳環連接件 | 雙耳環連接件 | 雙耳環支撐件 | ||
LS | FA | FB | CA | CC | CC1 | CB | TA | TB | J | L | F | FE | M | V | P6 | 1 | Y | B2 | ||
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | 84 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | 98 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | 104 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
● | ● | ● | * | * | * | * | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ◎ | 110 |
● | ● | ● | * | * | * | * | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ||
● | ● | ● | * | * | * | * | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ||
● | ● | ● | * | * | * | * | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | 116 | |
● | ● | ● | ● | ● | ● | ● | ● | ● | * | ◎ | * | * | ◎ | ◎ | * | ◎ | ◎ | ◎ | * | 122 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ○ | ○ | ○ | ○ | ○ | 126 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | 134 |
● | ● | ● | ● | ○ | ○ | ● | ● | ● | * | * | ◎ | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | 140 |
● | ● | ● | ● | ● | ● | ● | ● | ● | * | * | * | * | ◎ | * | ◎ | ◎ | ◎ | ◎ | 146 | |
● | ● | * | * | * | * | * | ● | * | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ◎ | 150 |
● | ● | * | * | * | * | * | ● | * | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ||
● | ● | * | * | * | * | * | ● | * | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ||
* | ● | * | * | * | * | * | * | * | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | ◎ | 156 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | * | ◎ | ◎ | ◎ | ◎ | 162 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | 168 |
● | ● | ● | ● | ● | ● | ● | ● | ● | ◎ | ◎ | * | * | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | 174 |
● | ● | ● | ● | ● | ● | ● | ● | ● | * | * | ○ | ○ | * | * | * | ◎ | ◎ | ◎ | ◎ | 178 |
注1:帶前地防坐落時可以選擇。注2:幫后端防墜落時可以選擇。注3:G2時可以選擇。 | CKD |
項目 | CMK2-S | ||||||
缸徑 mm | φ20 | φ25 | φ32 | φ40 | |||
動作方式 | 單作用 ·加壓伸出型 | ||||||
使用流體 | 壓縮空氣 | ||||||
最高使用壓力 MPa | 1.0 | ||||||
最低使用壓力 MPa | 0.2 | ||||||
耐壓力 MPa | 1.6 | ||||||
環境溫度 ℃ | -10~60(但是,不得凍結) | ||||||
配管口徑 | Rc1/8 | ||||||
行程允許誤差 mm | 號°(~200)、+合4(超過200~) | ||||||
使用活塞速度 mm/S | 50~500 | ||||||
緩沖 | 橡膠緩沖 | ||||||
給油 | 無需(給油時請使用透平油1種ISO VG32) | ||||||
允許吸收能量 | 0.166 | 0.308 | 0.424 | 0.639 | |||
注:單作用型氣缸請勿在加壓后長期放置。如果在加壓后長期放置,釋放壓力時,活塞桿有時會因為彈簧力而不復位。 | |||||||
行程 | |||||||
缸徑 | 標準行程 | 最大行程 | 最小行 | 程 | |||
無防塵套 | 帶防塵套 | 無防塵套 防塵套乙” | 防塵套“J” | ||||
φ20 | 25 ·50 ·75 ·100 ·150 | 300 | 300 | 5 | 25 | ||
φ25 | |||||||
φ32 | 25 ·50 ·75 ·100 · 150 ·200 | ||||||
φ40 | |||||||
注1:關于中間行程,可按每1mm為單位進行制作。 注2:單側腳座型(LS 型)的最大行程為50mm。 | |||||||
注3:關于防塵套“J”, 行程小于25mm 時請務必垂詢本公司。 |
開關規格 | |||||||||||||||
● 單色/雙色顯示式 | |||||||||||||||
項目 | 無觸點3線式 | 有觸點2線式 | |||||||||||||
T1H ·T1V | T2H·T2V·T2JH·T2JV | T2YH·T2YV | T2WH·T2WV | T3H·T3V | IBPH·TBPT(接單生產) | T3YH·T3YV | T3WH·T3WV | TOH·TOV | T5H·T5V | T8H·T8V | |||||
用途 | PLC、繼電器、小型電磁閥用 | PLC專用 | PLC、繼電器用 | PLC、繼電器用 | PLC、繼電器、IC回路(無指示燈)、串聯連接用 | PLC、繼電器用 | |||||||||
輸出方式 | 一 | NPN輸出 | PNP輸出 | NPN輸出 | NPN輸出 | 一 | |||||||||
電源電壓 | 一 | DC10~28V | 一 | ||||||||||||
負載電壓 | AC85~265V | DC10~30V | D024/±10% | DC3OV以下 | DC12/24V | AC100/110V | 005/12/24V | AC100/110V | DC12/24V | AC110V | AC220V | ||||
負荷電流 | 5~100mA | 5~20mA(注2) | 100mA以下 | 50mA以下 | 5~50mA7~20mA | 50mA以下 | 20mA以下 | 5~50mA | 7~20mA | 7~10mA | |||||
指示燈 | LED (ON時亮燈) | LED (ON時亮燈) | 紅色/綠色 LED (ON時亮燈) | 紅色/綠色 LED (ON時亮燈) | LED (ON時亮燈 | 黃色 LED (ON時亮燈) | 紅色/綠色 LED (ON時亮燈) | 紅色/綠色 LED (ON時亮燈) | LED (ON時亮燈) | 無指示燈 | LED (ON時亮燈) | ||||
泄漏電流 | AC100V時1mA以下、 AC200V時2mA以下 | 1mA以下 | 10μA以下 | OmA | |||||||||||
重量 8 | 1m:33 3m:87 5m:142 | 1m:18 3m:49 5m:80 | 1m:33 3m:87 5m:142 | 1m:18 3m:49 5m:80 | 1m:18 3m:49 5m:80 | m:33 3m:87 5m:142 | 1m:18 3m:49 5m:80 | 1m:18 3m:49 5m:80 | 1m:33 3m:87 5m:142 | ||||||
注1:關于其他的開關規格,請參閱卷末1。 | |||||||||||||||
注2:上述負載電流的最大值:20mA 為25℃時的值。開關使用環境溫度高于25℃時,會低于20mA。(60℃ 時為5~10mA。) 注 3 :TO/T5 開關也可以使用AC22OV。 使用條件請垂詢本公司。 | |||||||||||||||
注4:外形尺寸因開關型號而異。有關詳情,請參閱卷末18。 |
圖紙資料請聯系在線客服,或電聯我們

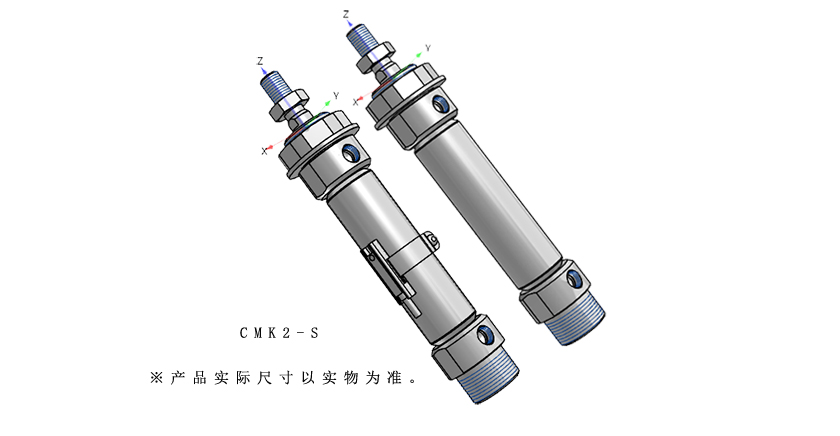

CKD緊固型氣缸CMK2-S單作用 加壓伸出型
